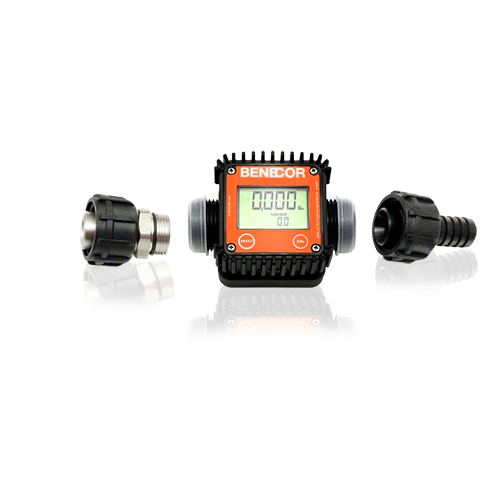

BENECOR DEF Flow Meter Assembly

DEF FLOW METER FEATURES

• Turbine Measuring System
• Reinforced Polyamide Body
• Threaded Input/Output, Aligned Male/Female Available
• Single Channel, Reed Switch
• Electronic Card With LCD Display ??? Partial 5 Figures From 0.1 To 99999, Total 6 Figures From 1 To 999999
• Total Resetting Available
• Flow Indication
• Can Be Calibrated

TECHNICAL SPECIFICATIONS

• Flow Range: Within +/- 1%
• Repetitiveness: 0.2%
• Max Flow Rate: 31.7 G/Min
• Working Temp: 14°F To 122°F (-10°C To 50°C)
• Loss Of Pressure: < 0.15 Bar
• Batteries: 2 Batteries Size AAA
