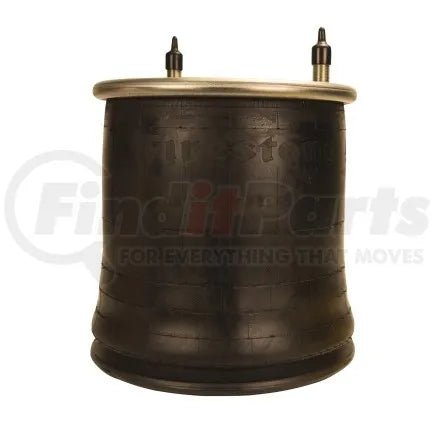

Firestone FS8050 Air Suspension Spring

Application Hendrickson Trailer S4771; Hendrickson Canada B-12514-013; Tuthill-Reyco 23631-01; Watson & Chalin AS-0039 Supercedes AT19J-6
Bead Plate Diameter Bottom 11.62 in.
Bead Plate Diameter Top 11.31 in.
Collapsed Height 5.80 in.
Convoluted Style 1T Reversible Sleeve
Max. Height 19.25 in.
Part Diameter 10.62 in.
Piston Height 4.00 in.
Stud Configuration-Bottom 4
Stud Configuration-Top 2
Stud Mount-Bottom Flat Flat
Stud Mount-Top Flat Stud
VMRS Code 016-008-000
