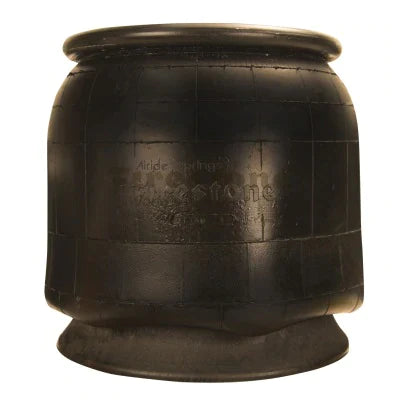

Firestone FS9069

Bead Plate Diameter Bottom: 9.50 in.
Bead Plate Diameter Top: 9.00 in.
Collapsed Height: 7.50 in.
Convoluted Style: 1T Reversible Sleeve
Max. Height: 18.00 in.
Application: Peterbilt 03-02456; Peterbilt 03-04759; Peterbilt 03-01649; Peterbilt 03-06746; Peterbilt 03-07112; Peterbilt 03-02038 (Air-Trac);
Mfg. SV# Peterbilt 03-10042
Part Diameter: 10.12 in.
Piston Height: 4.75 in.
VMRS Code: 016-008-000
Stud Configuration-Bottom: 01
Stud Configuration-Top: 03
Stud Mount-Bottom Flat: Stud
Stud Mount-Top Flat: Flat
